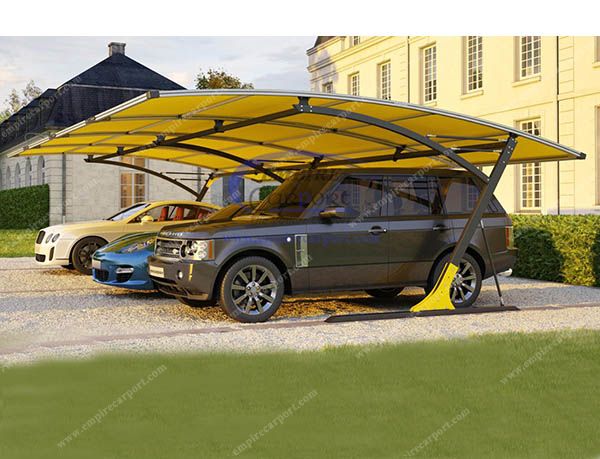

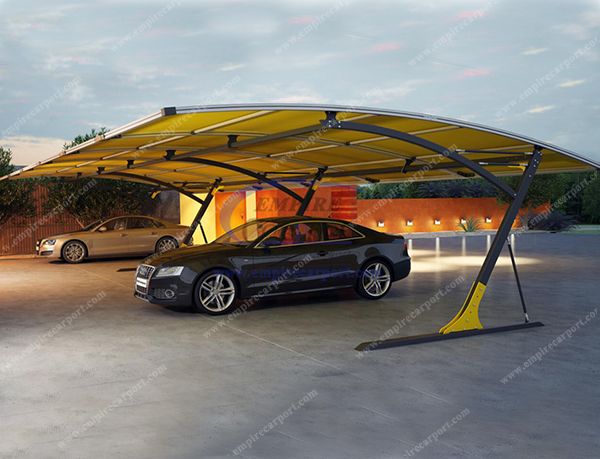

Carport for 4cars
Advantages:
1)Provides protection from harsh weather conditions (i.e sun, UV rays, heat, rain and hail damage)
2)PVDF (Polvinylidine Fluoride) coated membrane,will not sag,fade,rot or mildew
3)Does not require building plans or permission.
4)Requires little or no civil work,and It is maintenance free
5)Adds aesthetic value to the installation location
6)Can be easily assembled/dismantled,easily moved from one location to another place
PRODUCT FEATURES
Product Overviews:

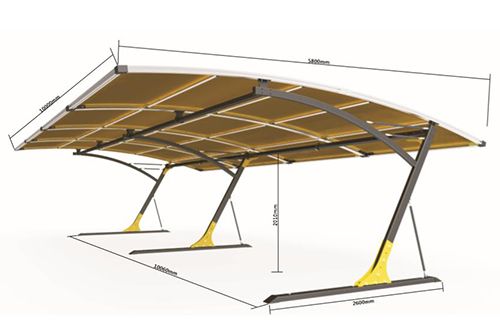

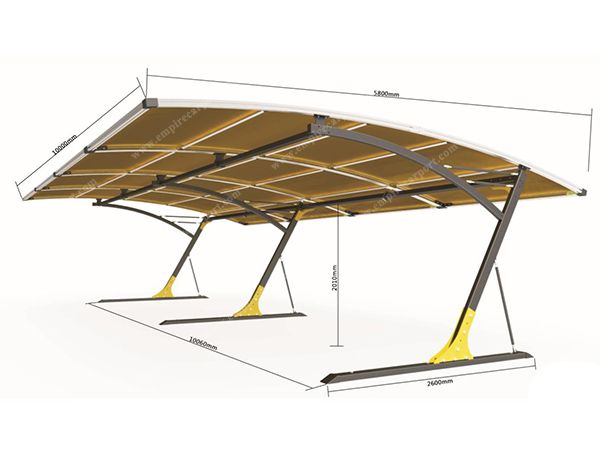

| Dimension: | 10000mm x 5950mm(width x length) 12000mm x 5950mm(width x length) |  |
| Materials: | Roof cover is PVDF membrane | |
| Roof structure is Aluminium | ||
| Column and beam is hot galvanizing steel | ||
| Weight: | 700kg(750kg with package 800kg(850kg with package)) | |
| Package: | Plywood case | |
| Anti-wind | 10 grade(100km/h) | |
| Anti-snow | 75kg/sq.m | |
| Fire Resistance | DIN4102 B1/M2 | |
| Life span | 15-20 years | |
| Labour | 4 persons | |
| Time of installation | 4-5 hours | |
| Color | Yellow,Gray,Blue,White,Brown,White,etc | |
| Container loading | 24units/20ft,35units/40ft 24units/20ft,30units/40ft |
Material introductions:
1. Materials of roof cover
Roof cover of this carport is made of 1150g/sq.m high density polyethylene fabric coated with PVDF (Polyvinylidine Fluoride) at surface.It is high quality at waterproof,flame retardant,UV resistant,heat insulating and will not sag,fade,rot or mildew.The temperature resistance(℃) is from -40℃ to +70℃ and the life span is at least 15 years.Color options:Yellow,Gray,Blue,White,Brown,White,etc
 |  |
2. Materials of roof structure
The roof frame to attach the PVDF membrane is made of aluminium(6061-T6).
 |
|
 |  |  |
3. Materials of Column and Beam
It is made of Q235 steel,and we use the best surface treatment process for the steel---electrostatic powder spraying and hot galvanizing,it is high quality at resistance to corrosion and oxidation,also will be not fade.Color options:Black,White,Brown,Green,etc
 |  |  |
 |  |  |
Resistance of our carports to Wind and Snow load(Please contact us to get the TEST REPORT):
Wind Load
Our carport are not only the beautiful apprearance,but has also been designed to withstand the extreme climate,especcilly is the typhoon and heavy snow.It can withstand 100-120km/h Wind Speed.Besides,we also supply the expand screws for you to fix carport on the ground very well.Snow Load
Our carport is well designed against the heavy snow.There are 6-8 aluminium pipes on the roof to support the heavy snow.Snow load exceed 0.3KN/sqm(50kg/sq.m and thickness of snow at 40-50cm).
 |  |
Guarantee of Our Carports:
We have quality control team who have strict quality control on all raw material. We ensure each part of carport will be in the highest quality.
The warranty of our carport is 5 years,if you have quality problem you need submit detail instruction and send clear photos for us in 7 days after you receive the product,then we will deal with the problem in 15 days.If the structure or cover of our carports has quality problem,we can send the new parts for free to you to replace.If it is damaged by your local people,we will offer to you at our lowest cost price.
Packaging & Shipping:
The carports will be packed in wooden case to avoid something missing or damage in the transport process.Please see the package size and weight as follows.
| Item | Carport size | Packing size | Packing weight | 20ft container |
| Single carport | 5.95(L)x3.1(W)m | 2.9x0.58x0.43m | 350kg | 40units |
| Double carport | 5.95(L)x6.0(W)m | 2.9x0.58x0.50m | 500kg | 32units |
| Triple carport | 5.95(L)x9.0(W)m | 2.9x0.58x0.65m | 650kg | 24units |
| Carport for 4cars | 5.95(L)x10.0(W)m 5.95(L)x12.0(W)m | 2.9x0.58x0.75m 2.9x0.58x0.80m | 750kg 800kg | 24units 24units |
 |  |  |
Installation of our carports:
It is not difficult to install this carport.We will offer detail installation Manul(documents and video) to you to study.
