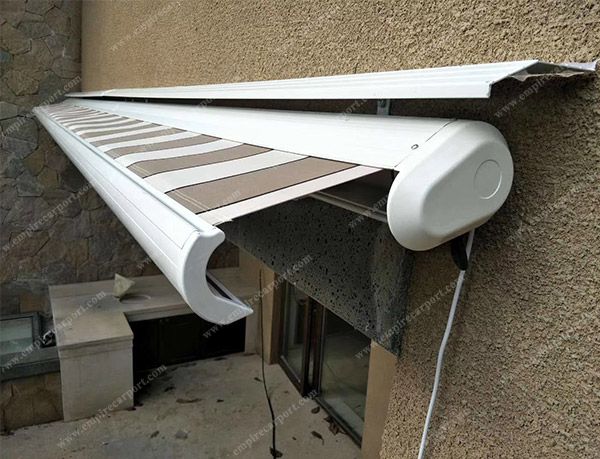

Full-Cassette Retractable Awning

Deluxe Full-cassette, elegant and compact appearance.

The front bar provide tight closing of the cassette.

Double use motor and weather sensor are available.

Different frame colors are available

Standard frame color is white

Share

PRODUCT FEATURES

Product Overviews:

Features

1. Deluxe Full-cassette,elegant and compact appearance.
2. The front bar provide tight closing of the cassette.
3. Double use motor and weather sensor are available.
4  Different frame colors are available ,Standard frame color is white.
5  PU coating fabric, waterproof, great heat resistance and UV protection  is avaialble.
6. The slope of the awning approximately 5-45 degrees adjustable from the horizontal line
7. Motorized, retractable, can be opened as much or as little as you like up to the maximum projection
8. Big size more than 5M awning with roller centre support.
9. Certificated: GS,CE,RoHS



Description

Name :  Motorized Aluminum Deluxe Full-Cassette Awning
Model : 6100
Fabric type : 280gsm Polyester(Acrylic)+ PU Coating
Fabric color : Any Color
Frame color : RAL9010(milk white), PC0102(Grey), PG3314(Black), PG0102(Grey)


Awning Data:

Max. size:  590x350cm

Min.  size:  150x80cm
Full-Cassette: A: 165*48mm  B: 157*125mm
Roller:  Φ78mm
Front Bar:  120*64mm
Support Arms: 60*31mm, 51*26mm
Gear Box: 1:7
Bracket: Standard:Wall Bracket


Option :

1. Fabric:Polyester or Acrylic, imported Spain fabric is available

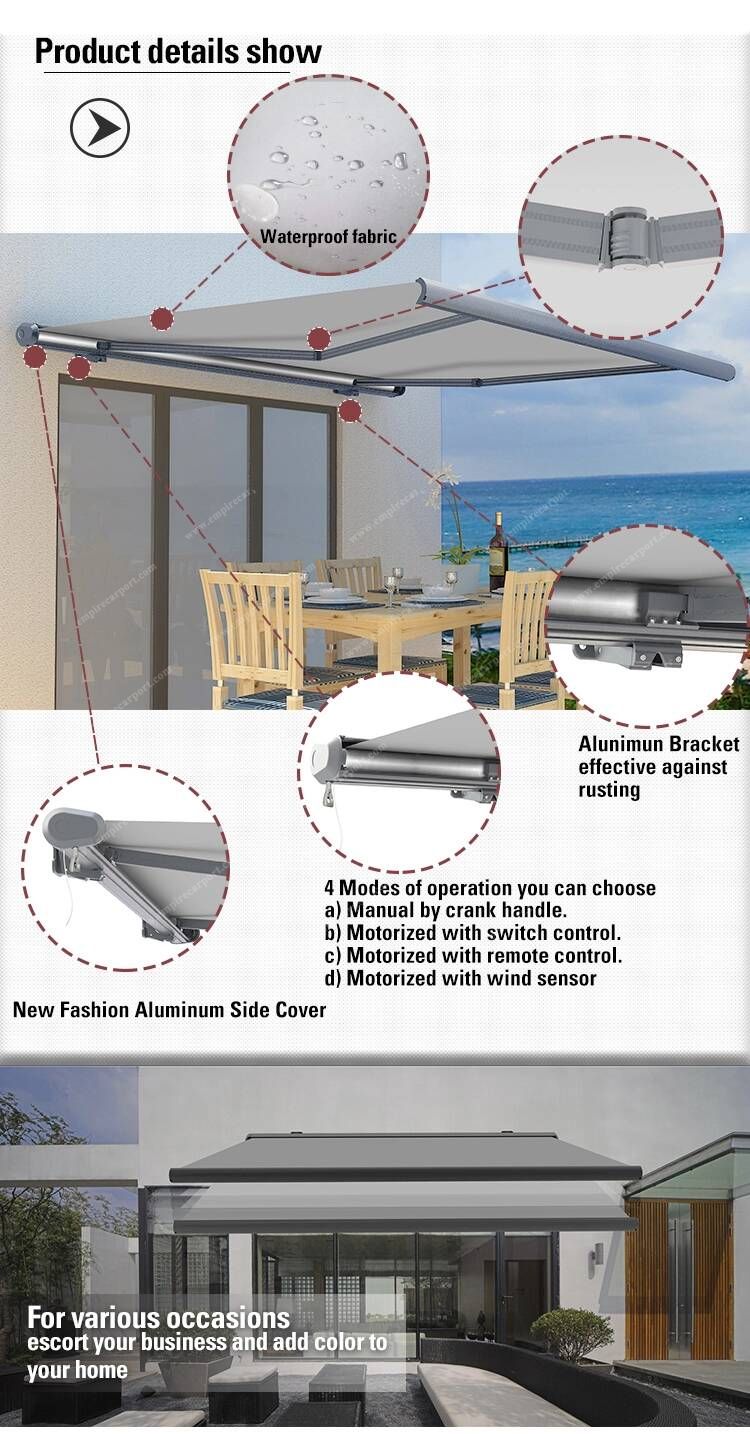

2. Operation:
a) Manual operated by crank
b) Motorized avialble
c) Sun/Wind Sensor is available

3. Angle adjust
4. Weather Sensor
5.Bracket: Wall or Ceiling bracket
