Full-Cassette Retractable Awning with LED light
Deluxe Full-cassette, elegant and compact appearance.
The front bar provide tight closing of the cassette.
Double use motor and weather sensor are available.
Different frame colors are available
Standard frame color is white
LED Light
PRODUCT FEATURES
Product Description:
Features
1. Deluxe Full-cassette,elegant and compact appearance.
2. The front bar provide tight closing of the cassette.
3. Double use motor and weather sensor are available.
4 Different frame colors are available ,Standard frame color is white.
5. LED Light.
6 PU coating fabric, waterproof, great heat resistance and UV protection is available.
7.The slope of the awning approximately 5-45 degrees adjustable from the horizontal line
8. Motorized, retractable, can be opened as much or as little as you like up to the maximum projection
9. Big size more than 5M awning with roller centre support.
10. Certificated: GS,CE,RoHS
Description
Name : Deluxe Full Cassette Retractable Awning with LED Light
Model : EM6100-LED
Fabric type : 280gsm Polyester(Acrylic)+ PU Coating
Fabric color : Any Color
Frame color : RAL9010(milk white), PC0102(Grey), PG3314(Black), PG0102(Grey)
Awning Data:
Max. size: 595x300cm
Min. size: 150x80cm
Full-Cassette: A: 165*48mm B: 157*125mm
Roller: Φ78mm
Front Bar: 120*64mm
Support Arms: 60*31mm, 51*26mm
Bracket: Standard:Wall Bracket
Option :
1. Fabric:Polyester or Acrylic, imported Spain fabric is available

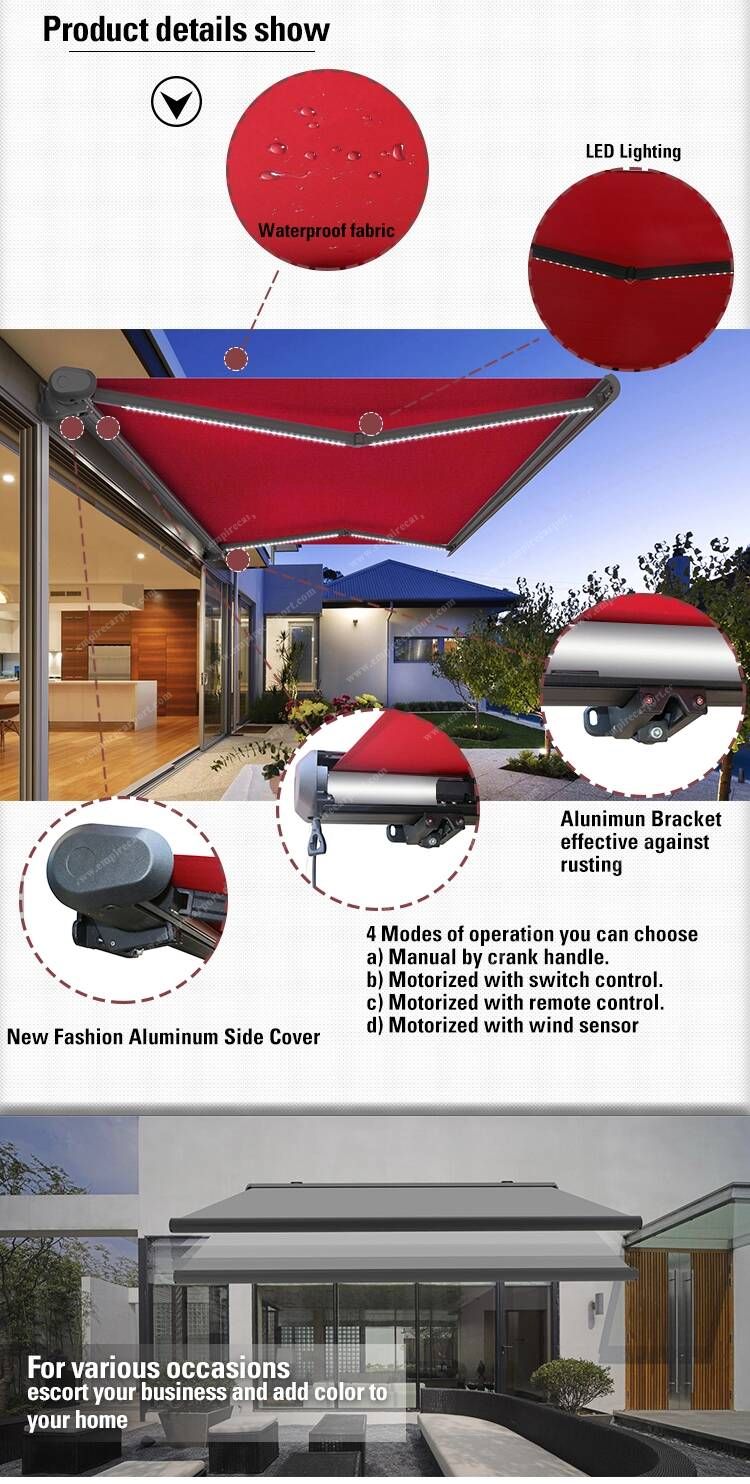

2. Operation:
a) Manual operated by crank
b) Motorized avialble
c) Sun/Wind Sensor is available
3. Angle adjust
4. LED light available
5.Weather Sensor
6. Bracket: Wall or Ceiling bracket
