Polycarbonate Carport for 1car and 2cars
Apart from the carport with membrane roof,now we still have another one with Polycarbonate roof(Anti-snow PC solid sheets).It is high quality at light transmission,weather resistance,high impact resistance,heat insulation,dust-proof and flame retardant.
PRODUCT FEATURES
Product Overviews:

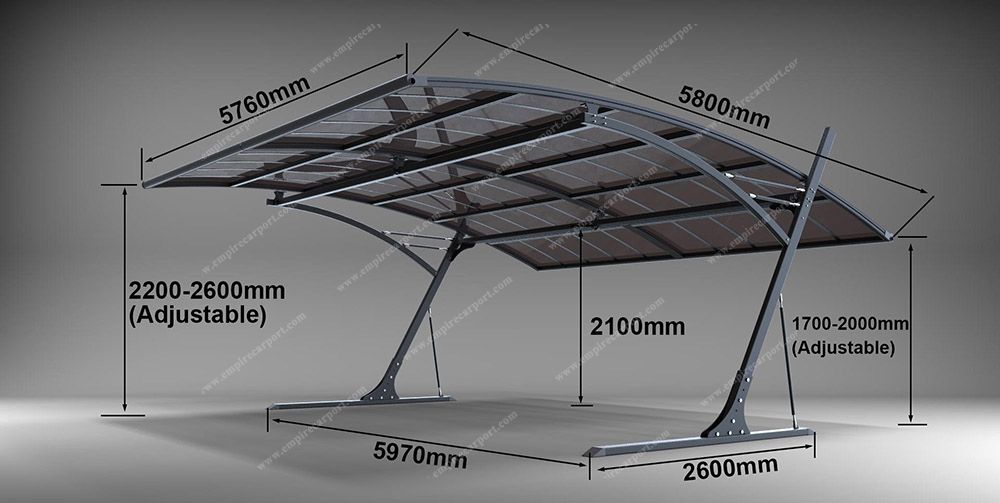

| Dimension: | 3100mm x 5950mm(width x length) for 1car | 6000mm x 5950mm(width x length) for 2 cars |
| Materials: | Roof cover is Polycarbonate plate | Roof cover is Polycarbonate plate |
| Roof structure is Aluminium alloy 6061-T6 | Roof structure is Aluminium alloy 6061-T6 | |
| Column and beam is hot galvanizing steel | Column and beam is hot galvanizing steel | |
| Weight: | 320kg(350kg with package) | 500kg(550kg with package) |
| Package: | Plywood case | Plywood case |
| Anti-wind | 10 grade(100km/h) | 10 grade(100km/h) |
| Anti-snow | 50kg/sq.m,0.5kn/sq.m Snow thickness 40-50cm | 50kg/sq.m,0.5kn/sq.m Snow thickness 40-50cm |
| Fire Resistance | DIN4102 B1/M2 | DIN4102 B1/M2 |
| Life span | 15-20 years | 15-20 years |
| Labour | 3 persons | 4 persons |
| Time of installation | 4-5 hours | 5-6 hours |
| Color | Clear,Light grey,Light brown,Dark grey,etc | Clear,Light grey,Light brown,Dark grey,etc |
| Container loading | 40units/20ft,75units/40ft | 32units/20ft,52units/40ft |
Material introductions:
1. Materials of roof cover
Roof cover of this carport is made of Double sided UV coating polycarbonate sheet.It is high quality at waterproof,flame retardant,UV resistant and Sunshine blockout.The temperature resistance(℃) is from -40℃ to +120℃ and the life span is at least 15 years.Color options:Clear,Light grey,Light brown,Darck grey,etc
2. Materials of roof structure
The roof frame to attach the PVDF membrane is made of aluminium(6061-T6).
 |
|
3. Materials of Column and Beam
It is made of Q235 steel,and we use the best surface treatment process for the steel---electrostatic powder spraying and hot galvanizing,it is high quality at resistance to corrosion and oxidation,also will be not fade.Color options:Black,White,Brown,Green,etc
 |  |  |
 |  |  |
Resistance of our carports to Wind and Snow load(Please contact us to get the TEST REPORT):
Wind Load
Our carport are not only the beautiful apprearance,but has also been designed to withstand the extreme climate,especcilly is the typhoon and heavy snow.It can withstand 100-120km/h Wind Speed.Besides,we also supply the expand screws for you to fix carport on the ground very well.Snow Load
Our carport is well designed against the heavy snow.There are 6-8 aluminium pipes on the roof to support the heavy snow.Snow load exceed 0.5KN/sqm(50kg/sq.m and thickness of snow at 40-50cm).
 |  |
Guarantee of Our Carports:
We have quality control team who have strict quality control on all raw material. We ensure each part of carport will be in the highest quality.
The warranty of our carport is 5 years,if you have quality problem you need submit detail instruction and send clear photos for us in 7 days after you receive the product,then we will deal with the problem in 15 days.If the structure or cover of our carports has quality problem,we can send the new parts for free to you to replace.If it is damaged by your local people,we will offer to you at our lowest cost price.
Packaging & Shipping:
The carports will be packed in wooden case to avoid something missing or damage in the transport process.Please see the package size and weight as follows.
| Item | Carport size | Packing size | Packing weight | 20ft container |
| Single carport | 5.95(L)x3.1(W)m | 2.9x0.58x0.43m | 350kg | 40units |
| Double carport | 5.95(L)x6.0(W)m | 2.9x0.58x0.55m | 500kg | 32units |
| Triple carport | 5.95(L)x9.0(W)m | 2.9x0.58x0.65m | 650kg | 24units |
| Carport for 4cars | 5.95(L)x10.0(W)m 5.95(L)x12.0(W)m | 2.9x0.58x0.75m 2.9x0.58x0.80m | 750kg 800kg | 24units 24units |
 |  |  |
Installation of our carports:
It is not difficult to install this carport.We will offer detail installation Manul(documents and video) to you to study.
